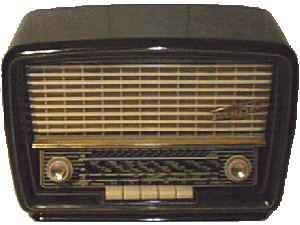

LOEWE OPTA Tempo 710W
Produced:
1955/56 in Kronach/Frankenwald/Germany

Case: brown bakelite

Size: (w/h/d) 32 x 22 x 17 cm

Loudspeakers: 1

Antennas: no built in

Frequencies/Bands: LW, MW, FM 87.5 - 100 MHz

Power: 110/127/150/200/220V AC

Tubes/Semicond.: 6 tubes ECC 85, ECH 81, EF 89, EABC 80, EL 84, EZ80

Originally priced: circa DM 350

Condition: now perfect

Comments: This set is a virtuel part of my radio museum. I electronically restored this set for a friend, checked all caps and tubes, changed 12 tar sealed paper capacitors, 2 electrolyric caps, the smoothing cap, 2 tubes, 3 dial lamps, repaired the dial rigging, cleaned all parts thoroughly and now works perfect. Changing parts was very difficult beacuse of the high density of electronic parts. The output transformer had to be dismantled for accessing the capacitors underneath. This compact set is pretty heavy and has almost the same amount of parts like larger sets. This elecronics restauration is pretty much typical for these sets of the 50ties when not in use for a while.
